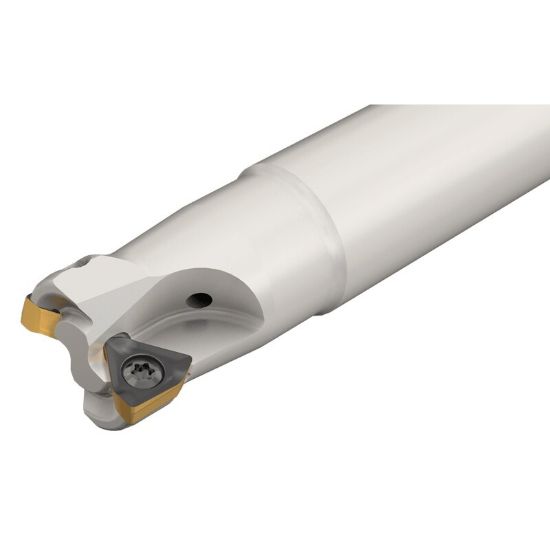

Picture of ISCAR HM390 ETC D.625-2W.625-07 Milling Cutter 90.0° 0.625 Diameter Weldon 0.625 3.000 OAL 2 Flute

ISCAR HM390 ETC D.625-2W.625-07 Milling Cutter 90.0° 0.625 Diameter Weldon 0.625 3.000 OAL 2 Flute

ANSI: HM390 ETC D.625-2W.625-07

ISO: HM390 ETC D.625-2W.625-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106936
Delivery date: 3-5 days
$314.88

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Insert Size Ic 7
Cut Dia Min 0.6250 15.88MM - 5/8
Depth Of Cut Max 0.2000
Machine Side Connection Type Weldon
Machine Side Connection Size 0.6250 15.88MM
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 3.0000 76.20MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TC
Cool Sply Type Through Hole
Max Ramp Angle 1.90°
Fasteners & Connectors
Insert Screw 7006639
