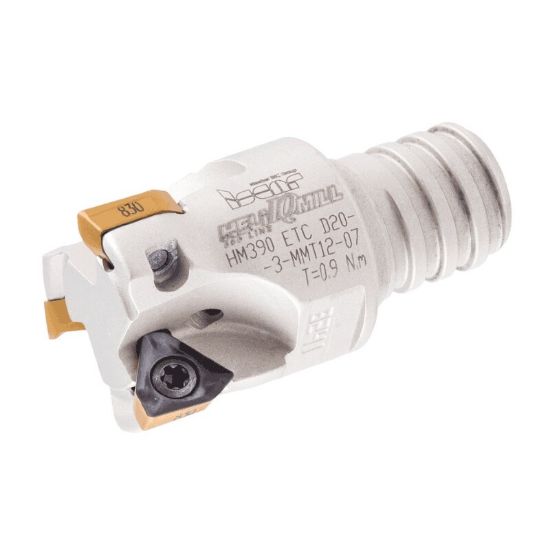

Picture of ISCAR HM390 ETC D.625-2MMT10-07 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.070 OAL 2 Flute

ISCAR HM390 ETC D.625-2MMT10-07 Milling Cutter 90.0° 0.625 Diameter Screw On T10 1.070 OAL 2 Flute

ANSI: HM390 ETC D.625-2MMT10-07

ISO: HM390 ETC D.625-2MMT10-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107027
Delivery date: 3-5 days
$332.16

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert Type Positive
Shipping State Texas
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size T10
Insert Size Ic 7
Machine Side Connection Type Screw On
Flutes/Inserts 2
Cut Dia Min 0.6250 15.88MM - 5/8
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Overall Len 1.0700 27.18MM
Depth Of Cut Max 0.2000
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 1.90°
Insert Style TC
Cool Sply Type Through Hole
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7006639
