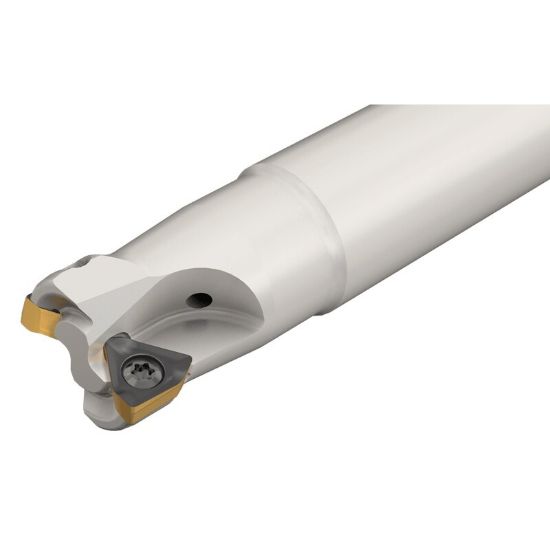

Picture of ISCAR HM390 ETC D1.25-5W1.25-07 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.250 OAL 5 Flute

ISCAR HM390 ETC D1.25-5W1.25-07 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 4.250 OAL 5 Flute

ANSI: HM390 ETC D1.25-5W1.25-07

ISO: HM390 ETC D1.25-5W1.25-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106939
Delivery date: 3-5 days
$461.76

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Ramp Milling, Slot Milling, Side Milling, Face Milling
Made In USA No
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Insert Type Positive
Package Size 1
Shipping State Texas
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.2000
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Cut Dia Max 1.2500 31.75MM - 1-1/4
Overall Len 4.2500 107.95MM
Tool Material Steel
Flutes/Inserts 5
Insert Size Ic 7
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Style TC
Cool Sply Type Through Hole
Max Ramp Angle 0.80°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 7006639
