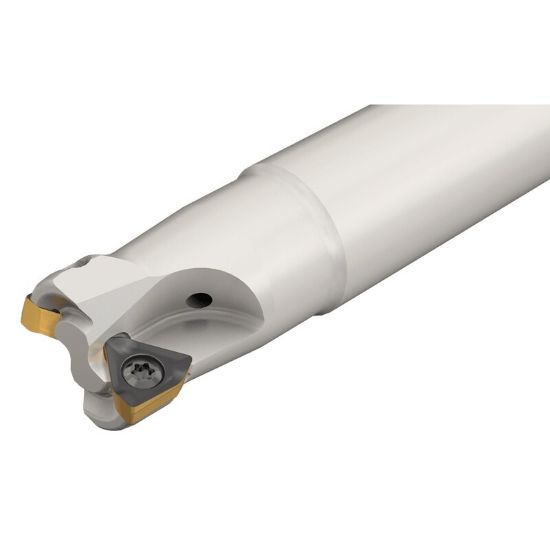

Picture of ISCAR HM390 ETC D1.00-4W1.00-07 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 4.000 OAL 4 Flute

ISCAR HM390 ETC D1.00-4W1.00-07 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 4.000 OAL 4 Flute

ANSI: HM390 ETC D1.00-4W1.00-07

ISO: HM390 ETC D1.00-4W1.00-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106938
Delivery date: 3-5 days
$403.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Ramp Milling, Slot Milling, Pocket Milling
Package Size 1
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Shipping State Texas
Dimensional Specifications
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Insert Size Ic 7
Depth Of Cut Max 0.2000
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Max Ramp Angle 1.00°
Cool Sply Type Through Hole
Insert Style TC
Fasteners & Connectors
Insert Screw 7006639
