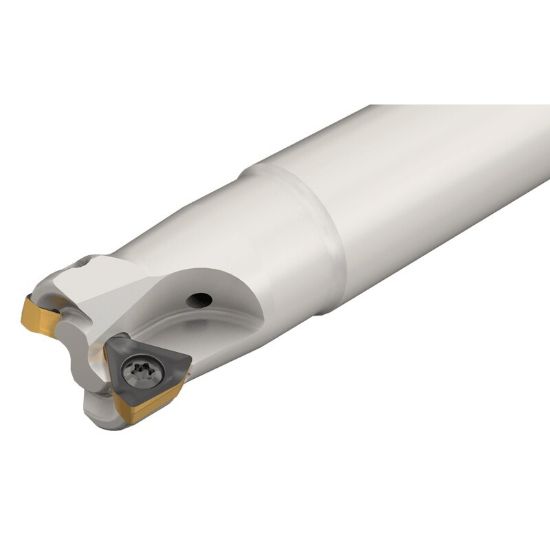

Picture of ISCAR HM390 ETC D1.00-4W0.75-07 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.500 OAL 4 Flute

ISCAR HM390 ETC D1.00-4W0.75-07 Milling Cutter 90.0° 1.000 Diameter Weldon 0.750 3.500 OAL 4 Flute

ANSI: HM390 ETC D1.00-4W0.75-07

ISO: HM390 ETC D1.00-4W0.75-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107023
Delivery date: 3-5 days
$403.20

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Application Ramp Milling, Slot Milling, Side Milling, Face Milling, Pocket Milling
Insert/Tool Tool
Package Size 1
Shipping State Texas
Dimensional Specifications
Flutes/Inserts 4
Overall Len 3.5000 88.90MM
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 7
Depth Of Cut Max 0.2000
Cut Dia Max 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Cool Sply Type Through Hole
Max Ramp Angle 1.00°
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TC
Fasteners & Connectors
Insert Screw 7006639
