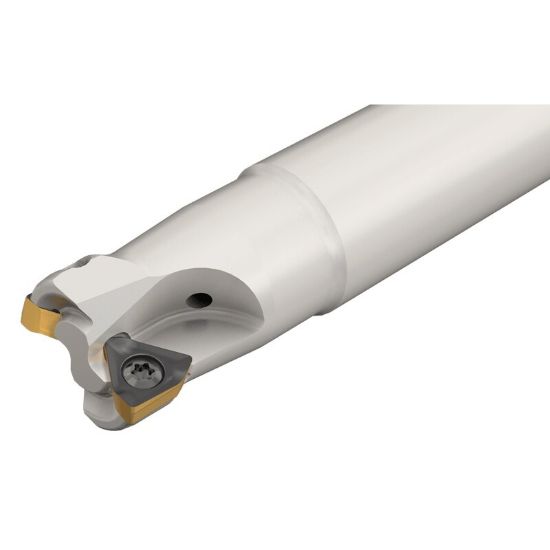

Picture of ISCAR HM390 ETC D0.75-3W0.75-07 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.500 OAL 3 Flute

ISCAR HM390 ETC D0.75-3W0.75-07 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.500 OAL 3 Flute

ANSI: HM390 ETC D0.75-3W0.75-07

ISO: HM390 ETC D0.75-3W0.75-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106937
Delivery date: 3-5 days
$348.48

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Slot Milling, Ramp Milling, Side Milling
Package Size 1
Insert/Tool Tool
Insert Type Positive
Insert Application Semi Finishing, Roughing
Shipping State Texas
Made In USA No
Dimensional Specifications
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Cut Dia Max 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.2000
Machine Side Connection Type Weldon
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 3
Insert Size Ic 7
Overall Len 3.5000 88.90MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Max Ramp Angle 1.50°
Coolant Thru Yes
Insert Style TC
Cool Sply Type Through Hole
Fasteners & Connectors
Insert Screw 7006639
