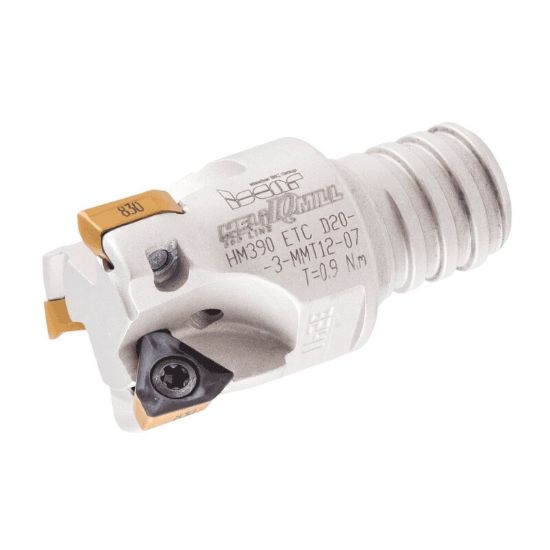

Picture of ISCAR HM390 ETC D0.75-3MMT12-07 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.270 OAL 3 Flute

ISCAR HM390 ETC D0.75-3MMT12-07 Milling Cutter 90.0° 0.750 Diameter Screw On T12 1.270 OAL 3 Flute

ANSI: HM390 ETC D0.75-3MMT12-07

ISO: HM390 ETC D0.75-3MMT12-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107028
Delivery date: 3-5 days
$362.88

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Insert Type Positive
Package Size 1
Shipping State Texas
Dimensional Specifications
Insert Size Ic 7
Machine Side Connection Type Screw On
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Cut Dia Max 0.7500 19.05MM - 3/4
Machine Side Connection Size T12
Tool Material Steel
Overall Len 1.2700 32.26MM
Cut Dia Min 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.2000
Cutting & Machining Properties
Coolant Thru Yes
Max Ramp Angle 1.50°
Insert Style TC
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 7006639
