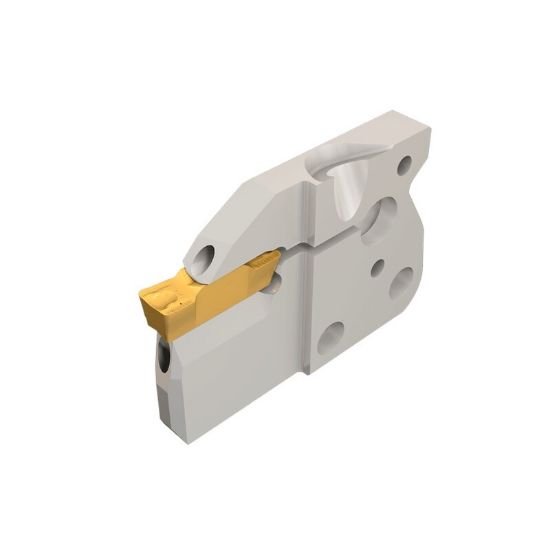

Picture of ISCAR HGPAD 5R-T20-JHP Cut Off,Grooving,Groove Turning Adapter Blade Tool

ISCAR HGPAD 5R-T20-JHP Cut Off,Grooving,Groove Turning Adapter Blade Tool

ANSI: HGPAD 5R-T20-JHP

ISO: HGPAD 5R-T20-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500714
Delivery date: 3-5 days
$220.80

Details

MODULAR-GRIP adapters with high pressure coolant channels carrying turning, grooving and parting inserts.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Package Size 1
Insert Type Positive
Application Ext.Groove Turning, Ext.Grooving, Parting
Shipping State Texas
Dimensional Specifications
Insert Size Ic 5
Cutting Width 0.1970 5.00MM
Tool Material Steel
Overall Len 1.7990 45.69MM
Depth Of Cut Max 0.7870
Machine Side Connection Type Modular
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GR,DG
Coolant Thru Yes
