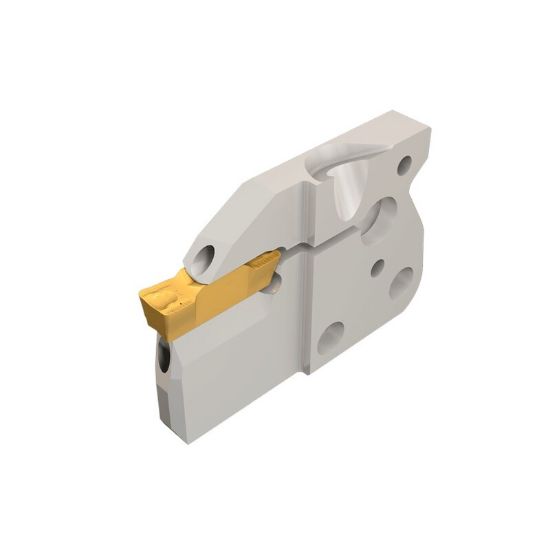

Picture of ISCAR HGPAD 5L-T20-JHP Cut Off,Grooving,Groove Turning Adapter Blade Tool

ISCAR HGPAD 5L-T20-JHP Cut Off,Grooving,Groove Turning Adapter Blade Tool

ANSI: HGPAD 5L-T20-JHP

ISO: HGPAD 5L-T20-JHP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500713
Delivery date: 3-5 days
$220.80

Details

MODULAR-GRIP adapters with high pressure coolant channels carrying turning, grooving and parting inserts.

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Groove Turning, Ext.Grooving, Parting
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Insert Application General Purpose
Made In USA No
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.7870
Insert Size Ic 5
Cutting Width 0.1970 5.00MM
Tool Material Steel
Machine Side Connection Type Modular
Overall Len 1.7990 45.69MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GR,DG
Coolant Thru Yes
