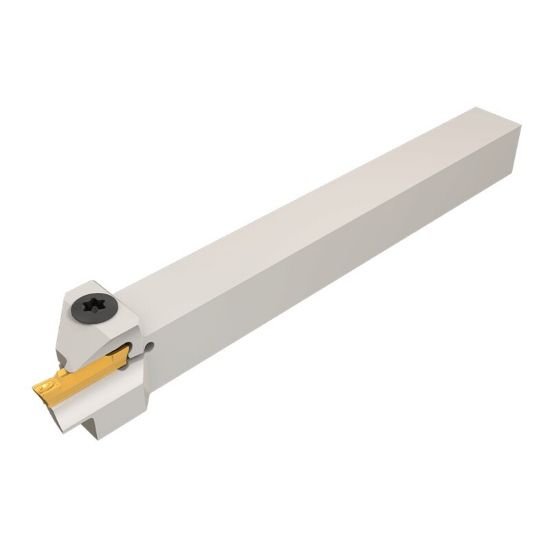

Picture of ISCAR HGHL 19-16-3T6 Face Grooving Stick Tool 0.750 Tool

ISCAR HGHL 19-16-3T6 Face Grooving Stick Tool 0.750 Tool

ANSI: HGHL 19-16-3T6

ISO: HGHL 19-16-3T6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500701
Delivery date: 3-5 days
$238.08

Important Notes

HGN & GRIP inserts can be used only with right-hand toolholders, HGPL inserts only with left-hand toolholders

Details

Integral holders for face grooving and turning Dmin .472".

Face Grooving Face Grooving & Turning Face Grooving Along Shaft

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Application Face Grooving
Made In USA No
Insert Type Positive
Package Size 1
Shipping State Texas
Dimensional Specifications
Face Groove Min Dia 0.6300
Face Groove Max Dia 0.9800
Depth Of Cut Max 0.2360
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Overall Len 5.0000 127.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 3
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting Width 0.1180 3.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style HF
Inter/Extern External
Hand R/L Left
