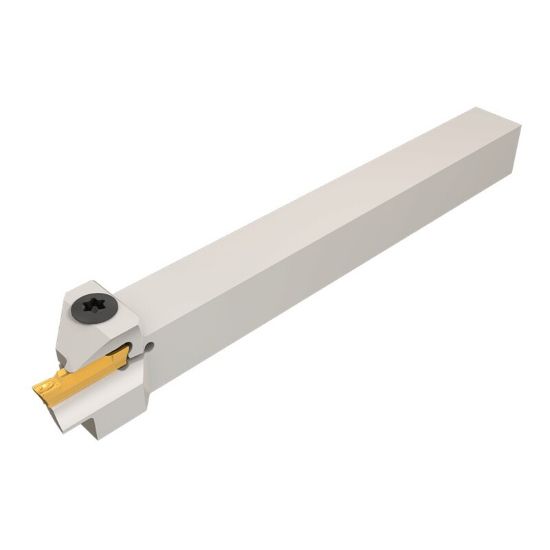

Picture of ISCAR HGHL 12.7-12-3T6 Face Grooving Stick Tool 0.500 Tool

ISCAR HGHL 12.7-12-3T6 Face Grooving Stick Tool 0.500 Tool

ANSI: HGHL 12.7-12-3T6

ISO: HGHL 12.7-12-3T6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500601
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Important Notes

HGN & GRIP inserts can be used only with right-hand toolholders, HGPL inserts only with left-hand toolholders

Details

Integral holders for face grooving and turning Dmin .472".

Face Grooving Face Grooving & Turning Face Grooving Along Shaft

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Texas
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Application Face Grooving
Insert Type Positive
Dimensional Specifications
Overall Len 5.0000 127.00MM
Insert Size Ic 3
Cutting Width 0.1180 3.00MM
Face Groove Min Dia 0.4700
Face Groove Max Dia 0.6300
Depth Of Cut Max 0.2360
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5000 12.70MM
Tool Width 0.5000
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style HF
Hand R/L Left
Inter/Extern External
