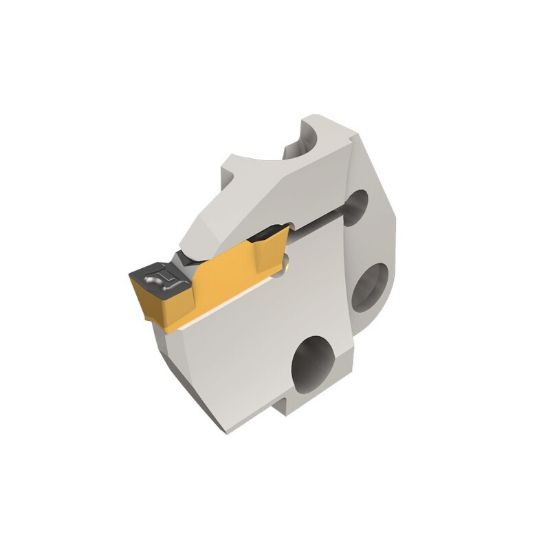

Picture of ISCAR HFPAD 6R-60-T14 Face Grooving Adapter Blade 1.260 Tool

ISCAR HFPAD 6R-60-T14 Face Grooving Adapter Blade 1.260 Tool

ANSI: HFPAD 6R-60-T14

ISO: HFPAD 6R-60-T14

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2550116
Delivery date: 3-5 days
$150.72

Important Notes

WF(assembly)=WF(shank) + WF(adapter) DGN & GRIP 6.. inserts can be used only with right-hand adapters, HGPL 6..inserts with left-hand adapters.

Details

Adapters for face grooving and turning in the 2.36-118" diameter range. Part of the MODULAR-GRIP system.

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Made In USA No
Insert Type Positive
Insert Application General Purpose
Application Face Grooving
Shipping State Texas
Dimensional Specifications
Cutting Width 0.2360 5.99MM
Face Groove Min Dia 2.3600
Face Groove Max Dia 3.9400
Depth Of Cut Max 0.5510
Overall Len 1.5940 40.49MM
Insert Size Ic 6
Machine Side Connection Size 1.2598 32.00MM
Tool Material Steel
Machine Side Connection Type Blade
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG,GR,HF
Hand R/L Right
