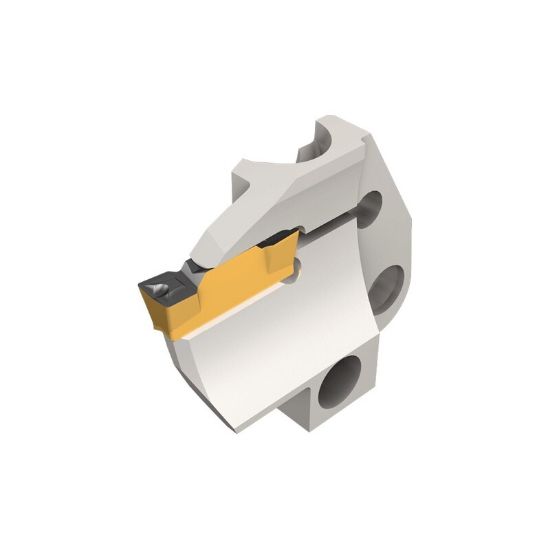

Picture of ISCAR HFPAD 5L-75-T14 Face Grooving Adapter Blade 1.260 Tool

ISCAR HFPAD 5L-75-T14 Face Grooving Adapter Blade 1.260 Tool

ANSI: HFPAD 5L-75-T14

ISO: HFPAD 5L-75-T14

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2550142
Delivery date: 3-5 days
$150.72

Important Notes

WF(assembly)=WF(shank) + WF(adapter) DGN & GRIP 5.. inserts can be used only with right-hand adapters, HGPL 5..inserts with left-hand adapters.

Details

Adapters for face grooving and turning in the 1.57-31" diameter range. Part of the MODULAR-GRIP system.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Application Face Grooving
Insert Type Positive
Made In USA No
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Overall Len 1.5940 40.49MM
Insert Size Ic 5
Face Groove Min Dia 2.9500
Tool Material Steel
Machine Side Connection Type Blade
Machine Side Connection Size 1.2598 32.00MM
Face Groove Max Dia 4.3300
Depth Of Cut Max 0.5510
Cutting Width 0.1970 5.00MM
Cutting & Machining Properties
Hand R/L Left
Insert Style HF,HG
Insert Shape/Cutter Pocket Shape Dog Bone
