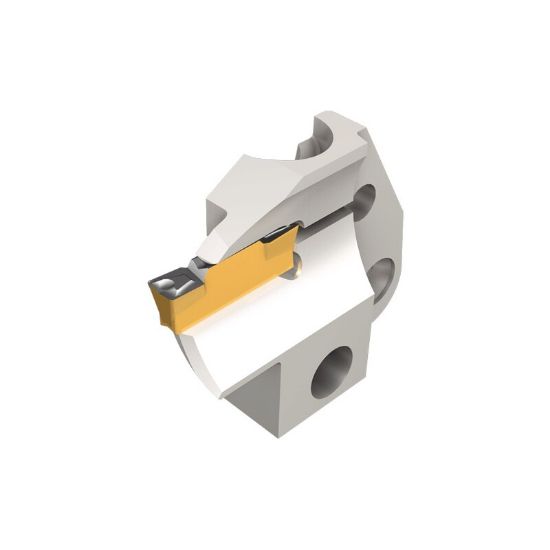

Picture of ISCAR HFPAD 4L-58-T14 Face Grooving Adapter Blade 1.260 Tool

ISCAR HFPAD 4L-58-T14 Face Grooving Adapter Blade 1.260 Tool

ANSI: HFPAD 4L-58-T14

ISO: HFPAD 4L-58-T14

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2550133
Delivery date: 3-5 days
$150.72

Important Notes

WF(assembly)=WF(shank) + WF(adapter) DGN & GRIP 4.. inserts can be used only with right-hand adapters, HGPL 4..inserts with left-hand adapters.

Details

Adapters for face grooving and turning in the .984-31" diameter range. Part of the MODULAR-GRIP system.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Application Face Grooving
Shipping State Texas
Insert Type Positive
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.5510
Face Groove Min Dia 2.2800
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Blade
Cutting Width 0.1570 3.99MM
Face Groove Max Dia 3.4600
Overall Len 1.5940 40.49MM
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Hand R/L Left
Insert Style HF,HG
Insert Shape/Cutter Pocket Shape Dog Bone
