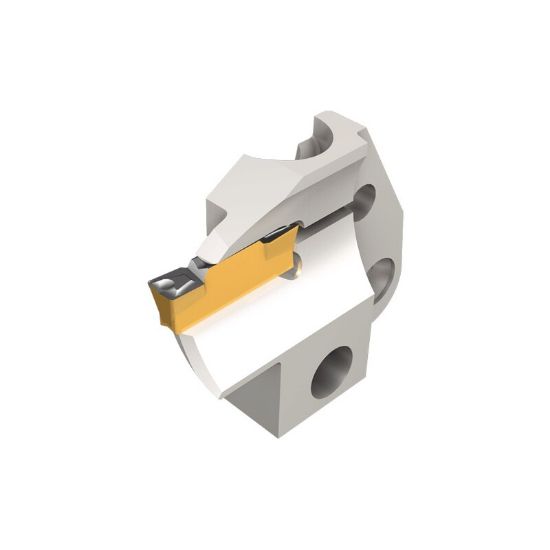

Picture of ISCAR HFPAD 4L-25-T10 Face Grooving Adapter Blade 1.260 Tool

ISCAR HFPAD 4L-25-T10 Face Grooving Adapter Blade 1.260 Tool

ANSI: HFPAD 4L-25-T10

ISO: HFPAD 4L-25-T10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2550129
Delivery date: 3-5 days
$150.72

Important Notes

WF(assembly)=WF(shank) + WF(adapter) DGN & GRIP 4.. inserts can be used only with right-hand adapters, HGPL 4..inserts with left-hand adapters.

Details

Adapters for face grooving and turning in the .984-31" diameter range. Part of the MODULAR-GRIP system.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Type Positive
Insert/Tool Tool
Package Size 1
Shipping State Texas
Insert Application General Purpose
Application Face Grooving
Dimensional Specifications
Face Groove Min Dia 0.9800
Face Groove Max Dia 1.2200
Machine Side Connection Size 1.2598 32.00MM
Overall Len 1.5940 40.49MM
Cutting Width 0.1570 3.99MM
Depth Of Cut Max 0.3940
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Blade
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style HF,HG
Hand R/L Left
