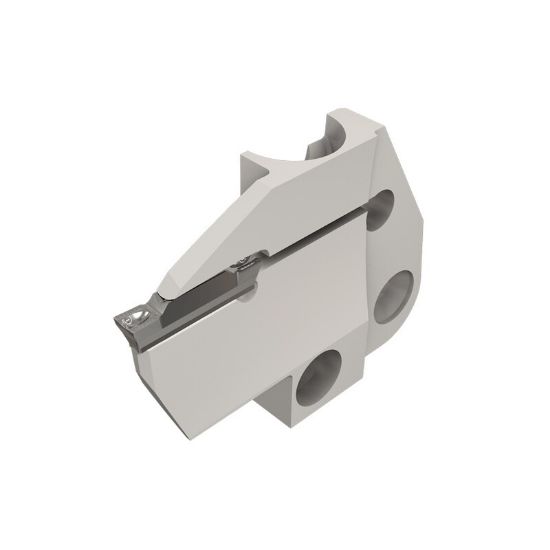

Picture of ISCAR HFPAD 3R-65-T18 Face Grooving Adapter Blade 1.260 Tool

ISCAR HFPAD 3R-65-T18 Face Grooving Adapter Blade 1.260 Tool

ANSI: HFPAD 3R-65-T18

ISO: HFPAD 3R-65-T18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2550126
Delivery date: 3-5 days
$150.72

Important Notes

WF(assembly)=WF(shank) + WF(adapter) HGN & GRIP 3.. inserts can be used only with right-hand adapters, HGPL 3..inserts with left-hand adapters.

Details

Adapters for face grooving and turning in the .984-15" diameter range. Part of the MODULAR-GRIP system.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Face Grooving
Shipping State Texas
Dimensional Specifications
Insert Size Ic 3
Face Groove Max Dia 4.5300
Machine Side Connection Type Blade
Machine Side Connection Size 1.2598 32.00MM
Tool Material Steel
Cutting Width 0.1180 3.00MM
Face Groove Min Dia 2.5600
Depth Of Cut Max 0.7090
Overall Len 1.7130 43.51MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Insert Style GR,HG
