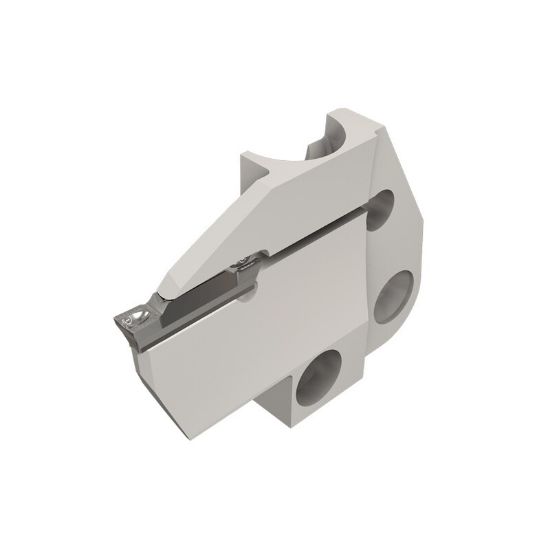

Picture of ISCAR HFPAD 3L-65-T18 Face Grooving Adapter Blade 1.260 Tool

ISCAR HFPAD 3L-65-T18 Face Grooving Adapter Blade 1.260 Tool

ANSI: HFPAD 3L-65-T18

ISO: HFPAD 3L-65-T18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2550125
Delivery date: 3-5 days
$150.72

Important Notes

WF(assembly)=WF(shank) + WF(adapter) HGN & GRIP 3.. inserts can be used only with right-hand adapters, HGPL 3..inserts with left-hand adapters.

Details

Adapters for face grooving and turning in the .984-15" diameter range. Part of the MODULAR-GRIP system.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Face Grooving
Shipping State Texas
Package Size 1
Insert Type Positive
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Blade
Cutting Width 0.1180 3.00MM
Face Groove Min Dia 2.5600
Overall Len 1.7130 43.51MM
Insert Size Ic 3
Face Groove Max Dia 4.5300
Machine Side Connection Size 1.2598 32.00MM
Depth Of Cut Max 0.7090
Cutting & Machining Properties
Hand R/L Left
Insert Style HG
Insert Shape/Cutter Pocket Shape Dog Bone
