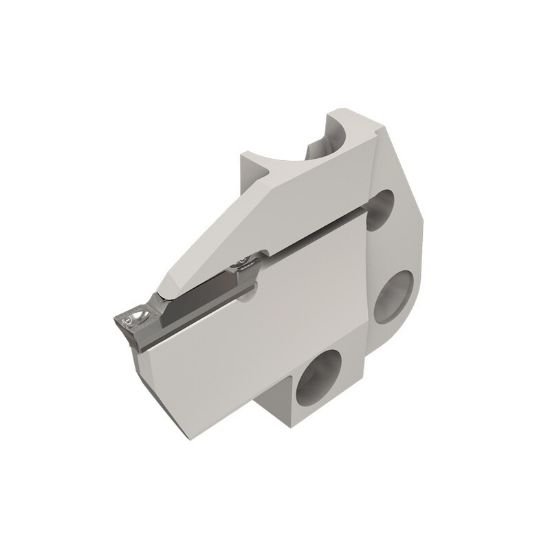

Picture of ISCAR HFPAD 3L-115-T18 Face Grooving Adapter Blade 1.260 Tool

ISCAR HFPAD 3L-115-T18 Face Grooving Adapter Blade 1.260 Tool

ANSI: HFPAD 3L-115-T18

ISO: HFPAD 3L-115-T18

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2550127
Delivery date: 3-5 days
$150.72

Important Notes

WF(assembly)=WF(shank) + WF(adapter) HGN & GRIP 3.. inserts can be used only with right-hand adapters, HGPL 3..inserts with left-hand adapters.

Details

Adapters for face grooving and turning in the .984-15" diameter range. Part of the MODULAR-GRIP system.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Positive
Insert/Tool Tool
Application Face Grooving
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Face Groove Max Dia 15.7500
Cutting Width 0.1180 3.00MM
Face Groove Min Dia 4.5300
Depth Of Cut Max 0.7090
Overall Len 1.7130 43.51MM
Tool Material Steel
Insert Size Ic 3
Machine Side Connection Type Blade
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Hand R/L Left
Insert Style HG
Insert Shape/Cutter Pocket Shape Dog Bone
