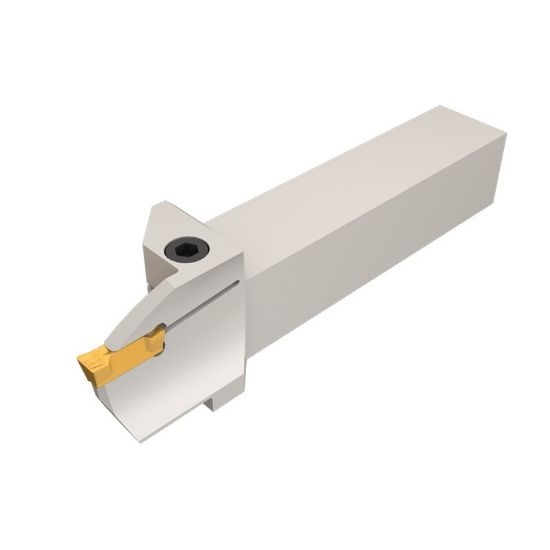

Picture of ISCAR HFHR 25.4-70-6T32 Face Grooving Stick Tool 1.000 Tool

ISCAR HFHR 25.4-70-6T32 Face Grooving Stick Tool 1.000 Tool

ANSI: HFHR 25.4-70-6T32

ISO: HFHR 25.4-70-6T32

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500326
Delivery date: 3-5 days
$258.24

Details

Integral toolholders for external facing. Dmin 1.18".

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Application Face Grooving
Insert Type Positive
Insert Application General Purpose
Made In USA No
Package Size 1
Dimensional Specifications
Face Groove Min Dia 2.7600
Depth Of Cut Max 1.2600
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting Width 0.2360 5.99MM
Overall Len 6.0000 152.40MM
Tool Width 1.0000
Tool Material Steel
Machine Side Connection Type Stick Tool
Face Groove Max Dia 3.9400
Insert Size Ic 6
Cutting & Machining Properties
Insert Style DG,GR,HF
Hand R/L Right
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
