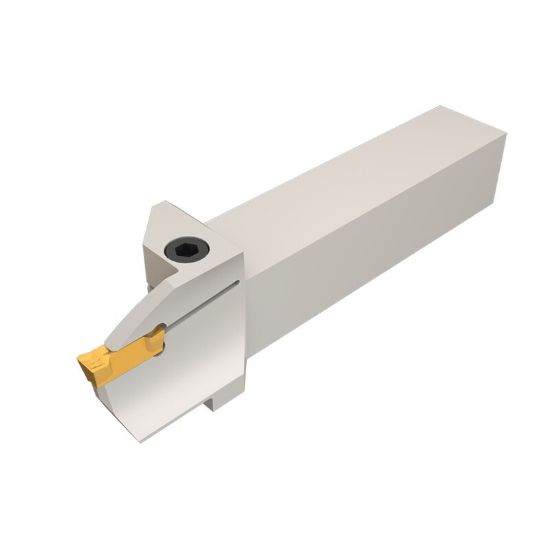

Picture of ISCAR HFHR 25.4-50-6T25 Face Grooving Stick Tool 1.000 Tool

ISCAR HFHR 25.4-50-6T25 Face Grooving Stick Tool 1.000 Tool

ANSI: HFHR 25.4-50-6T25

ISO: HFHR 25.4-50-6T25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500324
Delivery date: 3-5 days
$233.28

Details

Integral toolholders for external facing. Dmin 1.18".

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Type Positive
Insert/Tool Tool
Insert Application General Purpose
Application Face Grooving
Shipping State Texas
Package Size 1
Dimensional Specifications
Insert Size Ic 6
Cutting Width 0.2360 5.99MM
Overall Len 6.0000 152.40MM
Face Groove Min Dia 1.9700
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Depth Of Cut Max 0.9800
Tool Width 1.0000
Face Groove Max Dia 2.7600
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG,GR,HF
Hand R/L Right
Inter/Extern External
