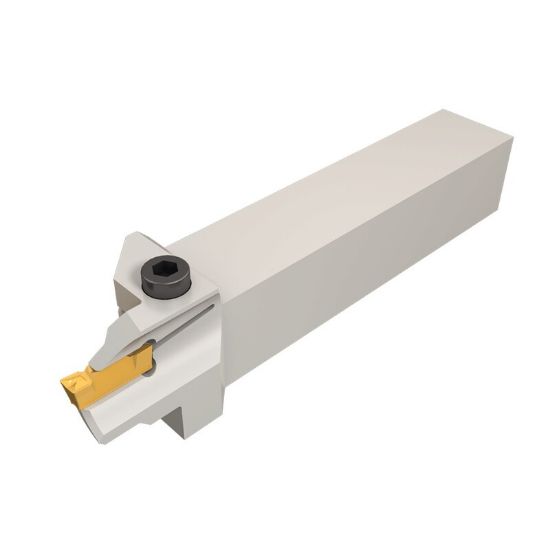

Picture of ISCAR HFHR 25.4-40-5T20 Face Grooving Stick Tool 1.000 Tool

ISCAR HFHR 25.4-40-5T20 Face Grooving Stick Tool 1.000 Tool

ANSI: HFHR 25.4-40-5T20

ISO: HFHR 25.4-40-5T20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500125
Delivery date: 3-5 days
$201.60

Details

Integral toolholders for external facing. Dmin .98".

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Grooving
Insert Type Positive
Shipping State Texas
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Cutting Width 0.1970 5.00MM
Face Groove Min Dia 1.5700
Depth Of Cut Max 0.7900
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 48, 5
Overall Len 6.0000 152.40MM
Tool Width 1.0000
Face Groove Max Dia 1.7700
Cutting & Machining Properties
Inter/Extern External
Insert Style DG,GR,HF
Insert Shape/Cutter Pocket Shape Dog Bone
Hand R/L Right
