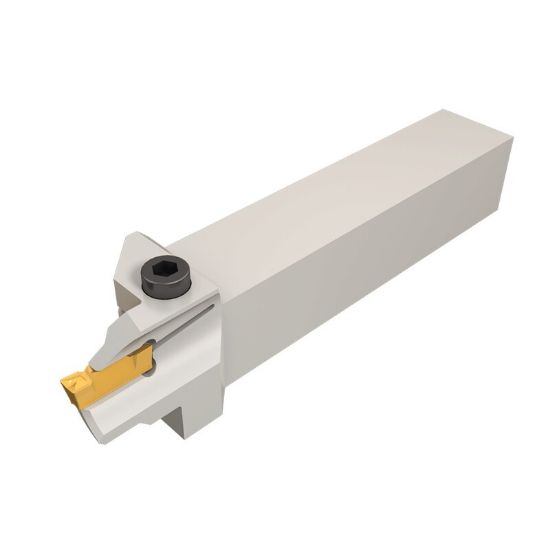

Picture of ISCAR HFHR 25.4-35-5T20 Face Grooving Stick Tool 1.000 Tool

ISCAR HFHR 25.4-35-5T20 Face Grooving Stick Tool 1.000 Tool

ANSI: HFHR 25.4-35-5T20

ISO: HFHR 25.4-35-5T20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500123
Delivery date: 3-5 days
$201.60

Details

Integral toolholders for external facing. Dmin .98".

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Positive
Insert/Tool Tool
Insert Application General Purpose
Application Face Grooving
Package Size 1
Made In USA No
Dimensional Specifications
Face Groove Max Dia 1.5700
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Shank/Pilot Dia 1.0000 25.40MM
Cutting Width 0.1970 5.00MM
Depth Of Cut Max 0.7900
Insert Size Ic 5, 48
Face Groove Min Dia 1.3800
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Style DG,GR,HF
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Hand R/L Right
