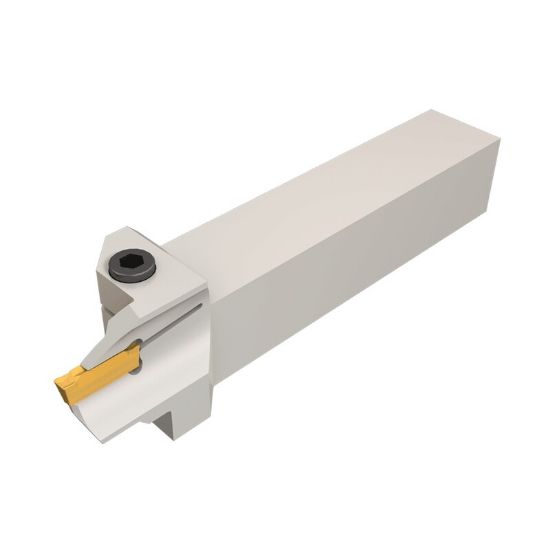

Picture of ISCAR HFHR 25.4-34-4T20 Face Grooving Stick Tool 1.000 Tool

ISCAR HFHR 25.4-34-4T20 Face Grooving Stick Tool 1.000 Tool

ANSI: HFHR 25.4-34-4T20

ISO: HFHR 25.4-34-4T20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500199
Delivery date: 3-5 days
$201.60

Details

Integral toolholders for external facing. Dmin .98".

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Made In USA No
Shipping State Texas
Insert Application General Purpose
Application Face Grooving
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Cutting Width 0.1570 3.99MM
Face Groove Max Dia 1.5700
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Face Groove Min Dia 1.3400
Depth Of Cut Max 0.7900
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG,GR,HF
Inter/Extern External
Hand R/L Right
