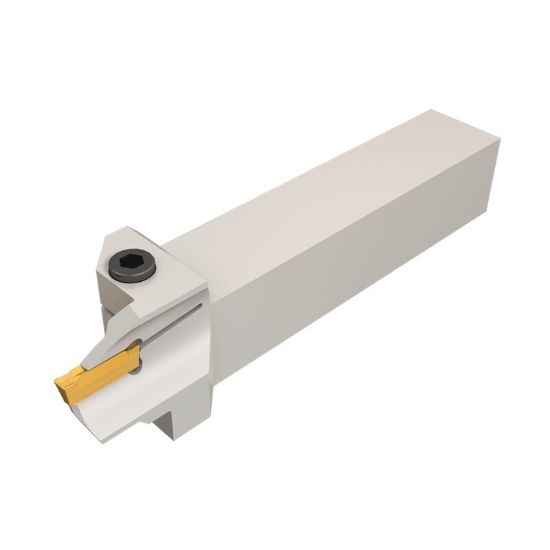

Picture of ISCAR HFHR 25.4-140-4T25 Face Grooving Stick Tool 1.000 Tool

ISCAR HFHR 25.4-140-4T25 Face Grooving Stick Tool 1.000 Tool

ANSI: HFHR 25.4-140-4T25

ISO: HFHR 25.4-140-4T25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500211
Delivery date: 3-5 days
$233.28

Details

Integral toolholders for external facing. Dmin .98".

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Application Face Grooving
Insert Type Positive
Shipping State Texas
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Face Groove Min Dia 5.5100
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Face Groove Max Dia 9.4500
Cutting Width 0.1570 3.99MM
Depth Of Cut Max 0.9800
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Hand R/L Right
Insert Style DG,GR,HF
Inter/Extern External
