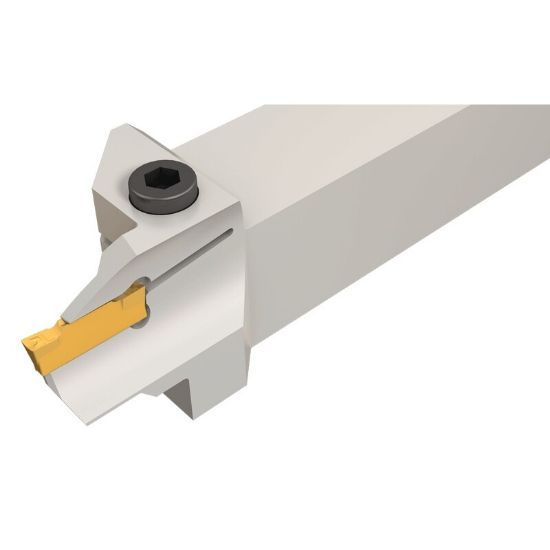

Picture of ISCAR HFHL 25.4-48-3T22 Face Grooving Stick Tool 1.000 Tool

ISCAR HFHL 25.4-48-3T22 Face Grooving Stick Tool 1.000 Tool

ANSI: HFHL 25.4-48-3T22

ISO: HFHL 25.4-48-3T22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500096
Delivery date: 3-5 days
$201.60

Details

Integral toolholders for external facing. Dmin .98"

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Application Face Grooving
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Overall Len 6.0000 152.40MM
Tool Width 1.0000
Tool Material Steel
Machine Side Connection Type Stick Tool
Face Groove Max Dia 2.3600
Insert Size Ic 3
Depth Of Cut Max 0.8700
Cutting Width 0.1180 3.00MM
Face Groove Min Dia 1.8900
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style HF
Inter/Extern External
Hand R/L Left
