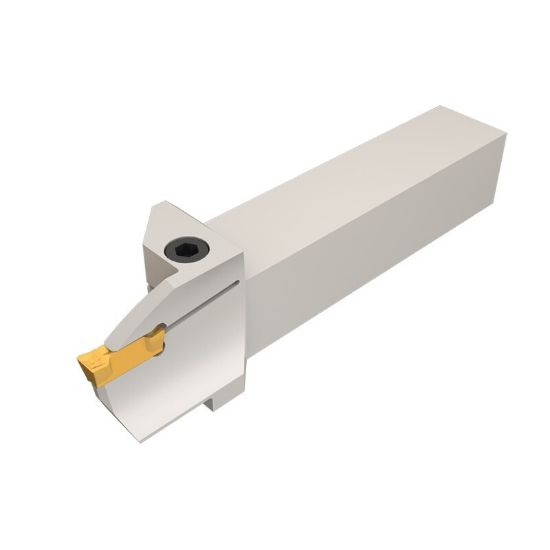

Picture of ISCAR HFHL 25.4-38-6T20 Face Grooving Stick Tool 1.000 Tool

ISCAR HFHL 25.4-38-6T20 Face Grooving Stick Tool 1.000 Tool

ANSI: HFHL 25.4-38-6T20

ISO: HFHL 25.4-38-6T20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500323
Delivery date: 3-5 days
$201.60

Details

Integral toolholders for external facing. Dmin 1.18".

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Grooving
Shipping State Texas
Insert Application General Purpose
Made In USA No
Package Size 1
Insert Type Positive
Dimensional Specifications
Face Groove Min Dia 1.5000
Depth Of Cut Max 0.7900
Tool Material Steel
Machine Side Connection Type Stick Tool
Face Groove Max Dia 1.9700
Tool Width 1.0000
Insert Size Ic 6
Cutting Width 0.2360 5.99MM
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style HF
Inter/Extern External
