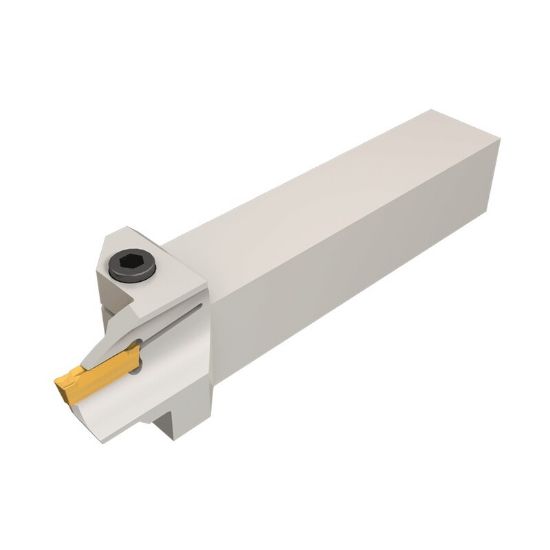

Picture of ISCAR HFHL 25.4-34-4T20 Face Grooving Stick Tool 1.000 Tool

ISCAR HFHL 25.4-34-4T20 Face Grooving Stick Tool 1.000 Tool

ANSI: HFHL 25.4-34-4T20

ISO: HFHL 25.4-34-4T20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500200
Delivery date: 3-5 days
$201.60

Details

Integral toolholders for external facing. Dmin .98".

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Positive
Insert/Tool Tool
Application Face Grooving
Insert Application General Purpose
Made In USA No
Package Size 1
Dimensional Specifications
Cutting Width 0.1570 3.99MM
Face Groove Max Dia 1.5700
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Face Groove Min Dia 1.3400
Depth Of Cut Max 0.7900
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 4
Overall Len 6.0000 152.40MM
Tool Width 1.0000
Cutting & Machining Properties
Hand R/L Left
Inter/Extern External
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style HF
