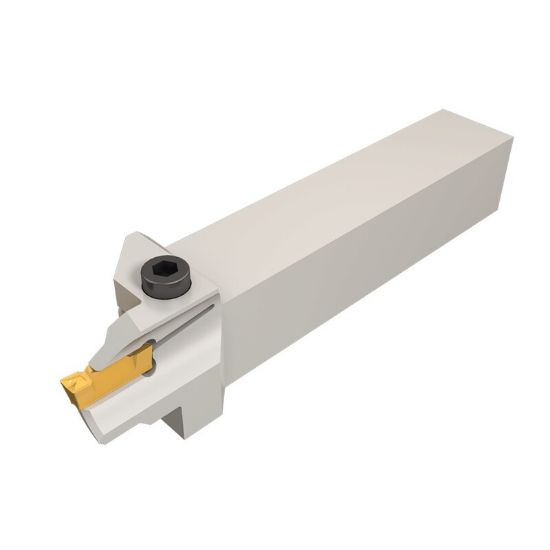

Picture of ISCAR HFHL 25.4-31-5T15 Face Grooving Stick Tool 1.000 Tool

ISCAR HFHL 25.4-31-5T15 Face Grooving Stick Tool 1.000 Tool

ANSI: HFHL 25.4-31-5T15

ISO: HFHL 25.4-31-5T15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500122
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

Integral toolholders for external facing. Dmin .98".

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Face Grooving
Dimensional Specifications
Face Groove Max Dia 1.3800
Tool Width 1.0000
Insert Size Ic 5
Cutting Width 0.1970 5.00MM
Depth Of Cut Max 0.6700
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Face Groove Min Dia 1.2200
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Style HF
Inter/Extern External
Hand R/L Left
Insert Shape/Cutter Pocket Shape Dog Bone
