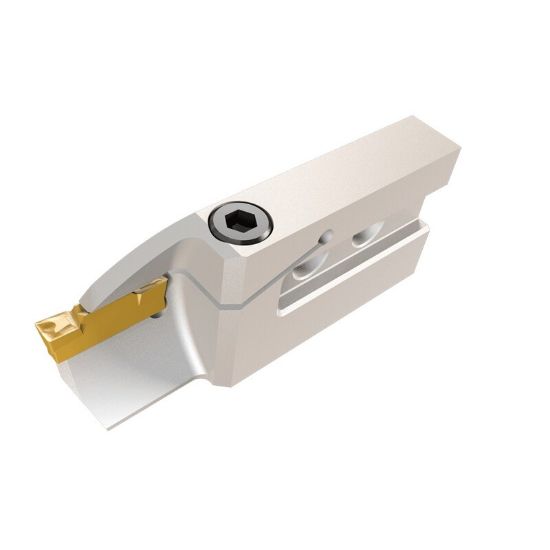

Picture of ISCAR HFAIL 48-4T20 Face Grooving Adapter Blade Tool

ISCAR HFAIL 48-4T20 Face Grooving Adapter Blade Tool

ANSI: HFAIL 48-4T20

ISO: HFAIL 48-4T20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2550064
Delivery date: 3-5 days
$244.80

Details

Adapters for internal face grooving and turning. Dmin 1.34".

Face Grooving Face Grooving & Turning Int. Face Grooving Int. Face Recessing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Face Grooving
Insert Application General Purpose
Made In USA No
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Modular
Overall Len 2.6380 67.01MM
Face Groove Max Dia 2.3600
Insert Size Ic 4
Cutting Width 0.1570 3.99MM
Face Groove Min Dia 1.8900
Depth Of Cut Max 0.7870
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG,HF,HG
Hand R/L Left
