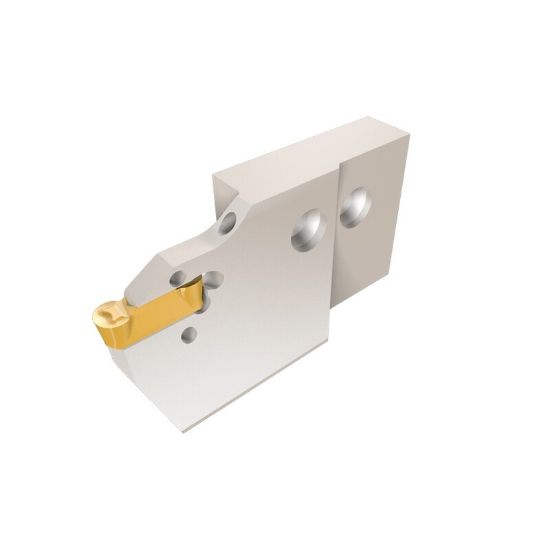

Picture of ISCAR HFAER 60-4T25 Face Grooving Adapter Blade Tool

ISCAR HFAER 60-4T25 Face Grooving Adapter Blade Tool

ANSI: HFAER 60-4T25

ISO: HFAER 60-4T25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2550076
Delivery date: 3-5 days
$244.80

Details

Adapters for external facing along shaft. Dmin. 1.57".

Face Grooving Face Grooving & Turning Face Grooving Along Shaft

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Grooving
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Texas
Dimensional Specifications
Face Groove Min Dia 2.3600
Face Groove Max Dia 2.9500
Tool Material Steel
Overall Len 2.6970 68.50MM
Depth Of Cut Max 0.9840
Machine Side Connection Type Modular
Insert Size Ic 4
Cutting Width 0.1570 3.99MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style DG,GR,HF
