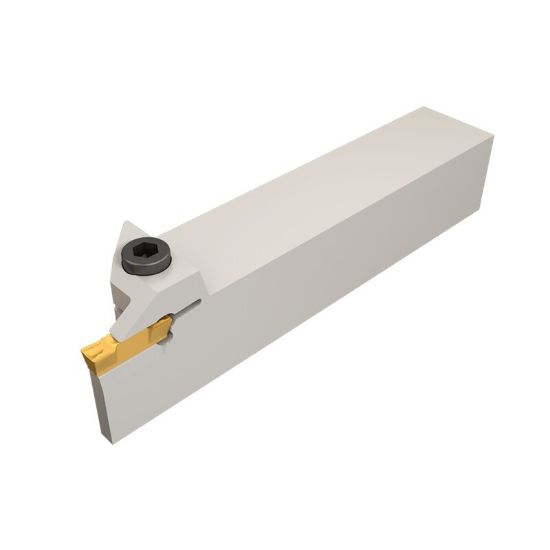

Picture of ISCAR HELIR 25.4-6T30 Cut Off,Grooving,Groove Turning Stick Tool 1.000 Tool

ISCAR HELIR 25.4-6T30 Cut Off,Grooving,Groove Turning Stick Tool 1.000 Tool

ANSI: HELIR 25.4-6T30

ISO: HELIR 25.4-6T30

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500456
Delivery date: 3-5 days
$193.92

Details

HELI-GRIP external holders for turning, grooving & parting

For tool type as shown in Fig.2, CDX for grooving is limited by the part diameter CUTDIA, for grooving depth capacity, click on "More Info" To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Application Ext.Groove Turning, Parting, Ext.Grooving
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 6
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting Width 0.2360 5.99MM
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Inter/Extern External
Insert Style GR,DG,DG
Insert Shape/Cutter Pocket Shape Other
