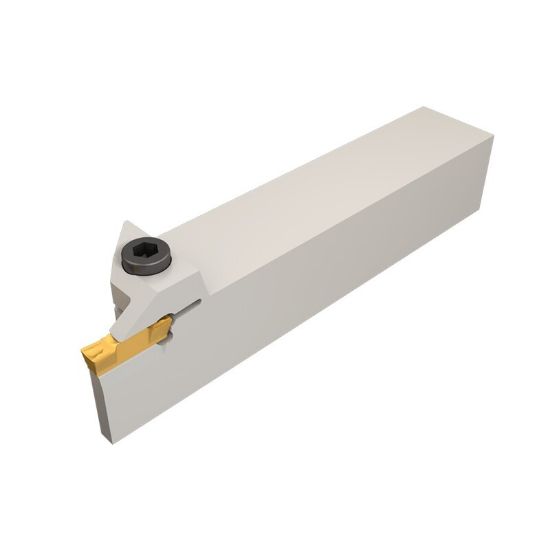

Picture of ISCAR HELIR 25.4-6T12 Cut Off,Grooving,Groove Turning Stick Tool 1.000 Tool

ISCAR HELIR 25.4-6T12 Cut Off,Grooving,Groove Turning Stick Tool 1.000 Tool

ANSI: HELIR 25.4-6T12

ISO: HELIR 25.4-6T12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500450
Delivery date: 3-5 days
$193.92

Details

HELI-GRIP external holders for turning, grooving & parting

For tool type as shown in Fig.2, CDX for grooving is limited by the part diameter CUTDIA, for grooving depth capacity, click on "More Info" To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Ext.Grooving, Parting, Ext.Groove Turning
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting Width 0.2360 5.99MM
Depth Of Cut Max 0.4700
Overall Len 6.0000 152.40MM
Insert Size Ic 6
Cutting & Machining Properties
Insert Style GR,DG,DG
Inter/Extern External
Insert Shape/Cutter Pocket Shape Other
