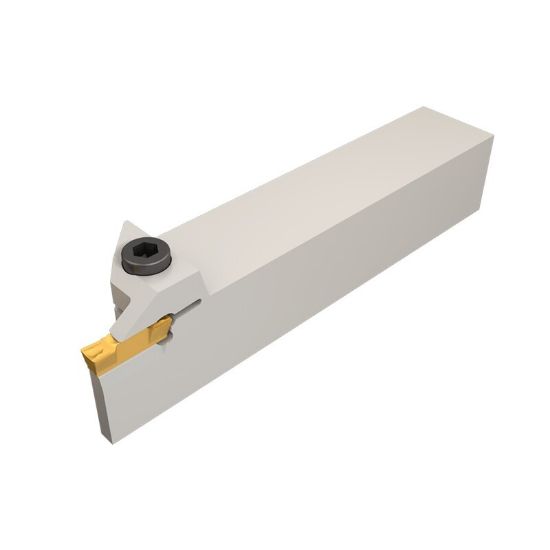

Picture of ISCAR HELIR 1616-3T20 Cut Off,Grooving,Groove Turning Stick Tool 0.629 Tool

ISCAR HELIR 1616-3T20 Cut Off,Grooving,Groove Turning Stick Tool 0.629 Tool

ANSI: HELIR 1616-3T20

ISO: HELIR 1616-3T20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500561
Delivery date: 3-5 days
$155.52

Details

HELI-GRIP external holders for turning, grooving & parting

For tool type as shown in Fig.2, CDX for grooving is limited by the part diameter CUTDIA, for grooving depth capacity, click on "More Info" To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Parting, Ext.Groove Turning
Shipping State Texas
Dimensional Specifications
Overall Len 5.5120 140.00MM
Insert Size Ic 3
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting Width 0.1180 3.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Inter/Extern External
Insert Style GR,HG
