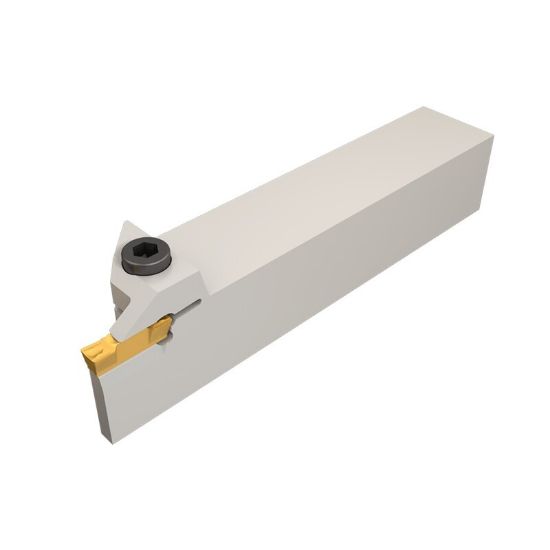

Picture of ISCAR HELIL 31.7-5T25 Cut Off,Grooving,Groove Turning Stick Tool 1.250 Tool

ISCAR HELIL 31.7-5T25 Cut Off,Grooving,Groove Turning Stick Tool 1.250 Tool

ANSI: HELIL 31.7-5T25

ISO: HELIL 31.7-5T25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500613
Delivery date: 3-5 days
$231.36

Details

HELI-GRIP external holders for turning, grooving & parting

For tool type as shown in Fig.2, CDX for grooving is limited by the part diameter CUTDIA, for grooving depth capacity, click on "More Info" To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Application Ext.Grooving, Parting, Ext.Groove Turning
Insert Application General Purpose
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting Width 0.1970 5.00MM
Tool Material Steel
Insert Size Ic 5
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Overall Len 7.0000 177.80MM
Cutting & Machining Properties
Insert Style GR,DG,DG
Inter/Extern External
Insert Shape/Cutter Pocket Shape Other
