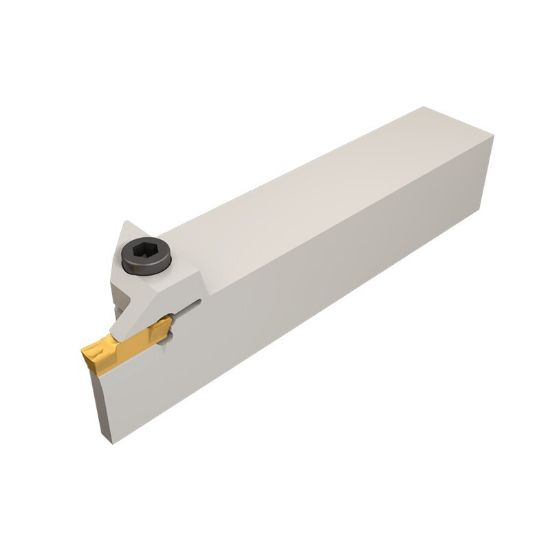

Picture of ISCAR HELIL 31.7-4T25 Cut Off,Grooving,Groove Turning Stick Tool 1.250 Tool

ISCAR HELIL 31.7-4T25 Cut Off,Grooving,Groove Turning Stick Tool 1.250 Tool

ANSI: HELIL 31.7-4T25

ISO: HELIL 31.7-4T25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500611
Delivery date: 3-5 days
$231.36

Details

HELI-GRIP external holders for turning, grooving & parting

For tool type as shown in Fig.2, CDX for grooving is limited by the part diameter CUTDIA, for grooving depth capacity, click on "More Info" To control the clamping torque, use interchangeable key blades and adjustable torque handles (optional), for information, click on "More Info"

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Application Ext.Grooving, Ext.Groove Turning, Parting
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 6
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 7.0000 177.80MM
Cutting Width 0.1570 3.99MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Inter/Extern External
Insert Style GR,DG,DG
