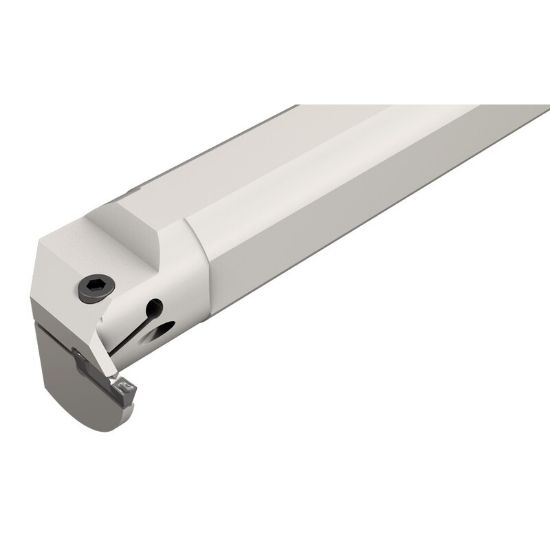

Picture of ISCAR HELIIL 25.4C-410 Grooving,Groove Turning Boring Bar 1.000 Tool

ISCAR HELIIL 25.4C-410 Grooving,Groove Turning Boring Bar 1.000 Tool

ANSI: HELIIL 25.4C-410

ISO: HELIIL 25.4C-410

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC2500477
Delivery date: 3-5 days
$315.84

Details

Grooving and turning bars with coolant holes for HELI-GRIP utility inserts

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Int.Groove Turning, Int.Grooving
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Overall Len 7.0000 177.80MM
Insert Size Ic 4
Depth Of Cut Max 0.3930
Tool Material Steel
Cutting Width 0.1570 3.99MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Style GR
Inter/Extern Internal
Hand R/L Left
