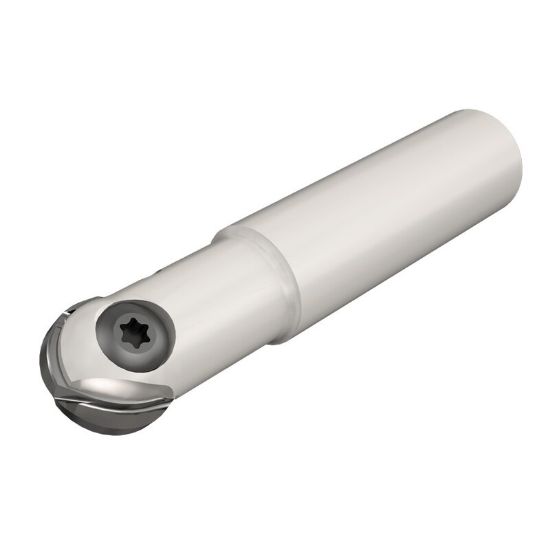

Picture of ISCAR HCM D.62-D-L6.5-C.75 Milling Cutter 0.625 Diameter Round 0.750 6.500 OAL 1 Flute

ISCAR HCM D.62-D-L6.5-C.75 Milling Cutter 0.625 Diameter Round 0.750 6.500 OAL 1 Flute

ANSI: HCM D.62-D-L6.5-C.75

ISO: HCM D.62-D-L6.5-C.75

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103603
Delivery date: 3-5 days
$345.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Application Profile Milling, Copy Milling
Package Size 1
Made In USA No
Insert Type Neutral
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.6250 15.88MM - 5/8
Tool Material Steel
Machine Side Connection Type Cylindrical
Cut Dia Max 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.7500 19.05MM
Overall Len 6.5000 165.10MM
Cut Dia Min 0.6250 15.88MM - 5/8
Insert Size Ic 0.62
Flutes/Inserts 1
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Flat Blade
Cool Sply Type External
Insert Style HB
Coolant Thru No
Fasteners & Connectors
Insert Screw 7003908
