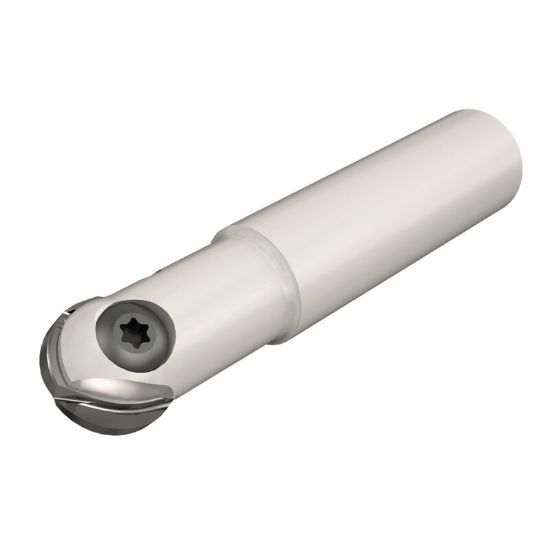

Picture of ISCAR HCM D.62-B-L6.7-C1.0 Milling Cutter 0.625 Diameter Round 1.000 6.700 OAL 1 Flute

ISCAR HCM D.62-B-L6.7-C1.0 Milling Cutter 0.625 Diameter Round 1.000 6.700 OAL 1 Flute

ANSI: HCM D.62-B-L6.7-C1.0

ISO: HCM D.62-B-L6.7-C1.0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103709
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Insert Application Finishing, Semi Finishing
Application Profile Milling, Copy Milling
Shipping State Texas
Insert Type Neutral
Insert/Tool Tool
Dimensional Specifications
Cut Dia Max 0.6250 15.88MM - 5/8
Tool Material Steel
Flutes/Inserts 1
Cut Dia Min 0.6250 15.88MM - 5/8
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 0.62
Machine Side Connection Type Cylindrical
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 6.7000 170.18MM
Cutting & Machining Properties
Insert Style HB
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru No
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002399
