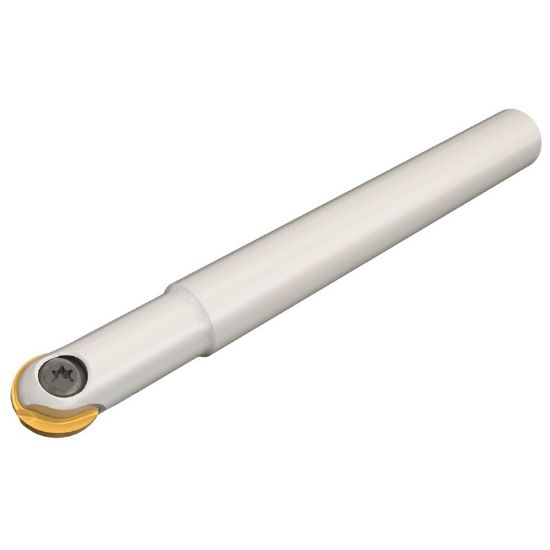

Picture of ISCAR HCM D.50-D-L6.5-C.62 Milling Cutter 0.500 Diameter Round 0.625 6.500 OAL 1 Flute

ISCAR HCM D.50-D-L6.5-C.62 Milling Cutter 0.500 Diameter Round 0.625 6.500 OAL 1 Flute

ANSI: HCM D.50-D-L6.5-C.62

ISO: HCM D.50-D-L6.5-C.62

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103600
Delivery date: 3-5 days
$287.04

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling
Insert Application Finishing, Semi Finishing
Insert/Tool Tool
Insert Type Neutral
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Cut Dia Max 0.5000 12.70MM - 1/2
Insert Size Ic 0.5
Cut Dia Min 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 6.5000 165.10MM
Flutes/Inserts 1
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style HB
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru No
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7004475
