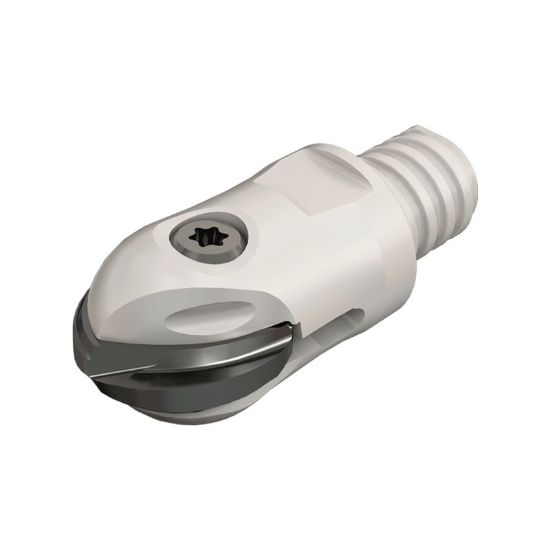

Picture of ISCAR HCM D20/.75-MMT12 Milling Cutter 0.787 Diameter Screw On T12 1.921 OAL 1 Flute

ISCAR HCM D20/.75-MMT12 Milling Cutter 0.787 Diameter Screw On T12 1.921 OAL 1 Flute

ANSI: HCM D20/.75-MMT12

ISO: HCM D20/.75-MMT12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104223
Delivery date: 3-5 days
$299.52

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing
Shipping State Texas
Package Size 1
Made In USA No
Insert Type Neutral
Application Copy Milling, Profile Milling
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 0.7870 19.99MM
Cutter Dia 0.7870 19.99MM
Flutes/Inserts 1
Insert Size Ic D250
Machine Side Connection Size T12
Machine Side Connection Type Screw On
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Overall Len 1.9210 48.79MM
Cutting & Machining Properties
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru No
Insert Style HC
Fasteners & Connectors
Insert Screw 7003394
