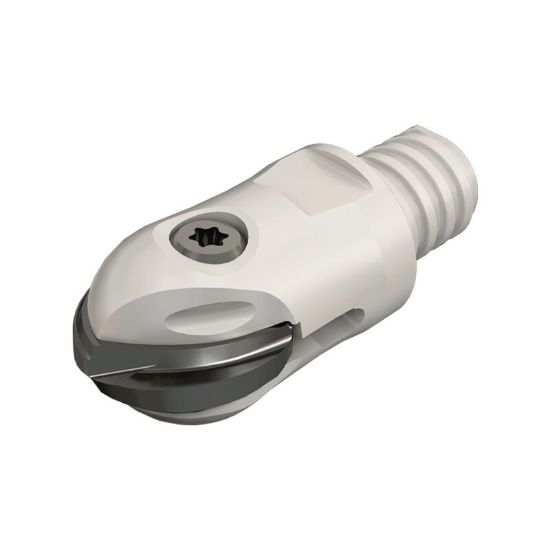

Picture of ISCAR HCM D12/.50-MMT08 Milling Cutter 0.472 Diameter Screw On T08 1.102 OAL 1 Flute

ISCAR HCM D12/.50-MMT08 Milling Cutter 0.472 Diameter Screw On T08 1.102 OAL 1 Flute

ANSI: HCM D12/.50-MMT08

ISO: HCM D12/.50-MMT08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104221
Delivery date: 3-5 days
$209.28

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Neutral
Insert Application Semi Finishing, Finishing
Application Profile Milling, Copy Milling
Shipping State Texas
Insert/Tool Tool
Package Size 1
Made In USA No
Dimensional Specifications
Cut Dia Min 0.4720 11.99MM
Cut Dia Max 0.4720 11.99MM
Overall Len 1.1020 27.99MM
Machine Side Connection Type Screw On
Machine Side Connection Size T08
Tool Material Steel
Flutes/Inserts 1
Insert Size Ic D120
Cutter Dia 0.4720 11.99MM
Cutting & Machining Properties
Insert Style HC
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru No
Fasteners & Connectors
Insert Screw 7003908
