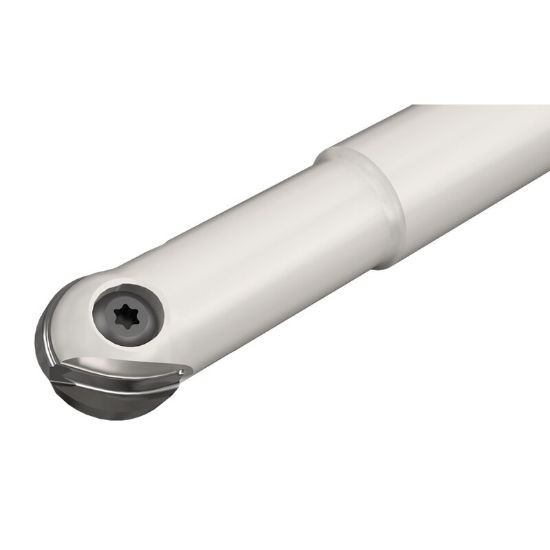

Picture of ISCAR HCM D1.0-D-L10.-C1.25 Milling Cutter 1.000 Diameter Round 1.250 10.00 OAL 1 Flute

ISCAR HCM D1.0-D-L10.-C1.25 Milling Cutter 1.000 Diameter Round 1.250 10.00 OAL 1 Flute

ANSI: HCM D1.0-D-L10.-C1.25

ISO: HCM D1.0-D-L10.-C1.25

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103609
Delivery date: 3-5 days
$465.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Neutral
Made In USA No
Insert Application Semi Finishing, Finishing
Application Copy Milling, Profile Milling
Shipping State Texas
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Insert Size Ic 1
Depth Of Cut Max 0.0510
Machine Side Connection Type Weldon
Flutes/Inserts 1
Cut Dia Max 1.0000 25.40MM
Overall Len 10.0000 254.00MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru No
Cool Sply Type External
Insert Style HB
Insert Shape/Cutter Pocket Shape Flat Blade
Fasteners & Connectors
Insert Screw 7003185
