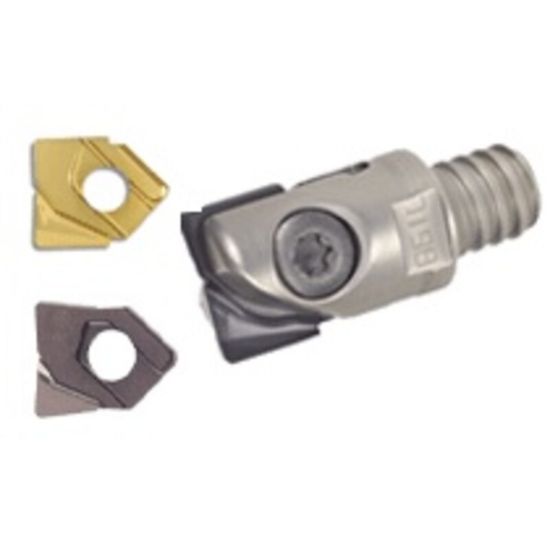

Picture of ISCAR HCE D20/.75-MMT12 Milling Cutter 0.787 Diameter Screw On T12 1.921 OAL 1 Flute

ISCAR HCE D20/.75-MMT12 Milling Cutter 0.787 Diameter Screw On T12 1.921 OAL 1 Flute

ANSI: HCE D20/.75-MMT12

ISO: HCE D20/.75-MMT12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104224
Delivery date: 3-5 days
$299.52

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application Finishing, Semi Finishing
Application Profile Milling, Copy Milling
Insert Type Neutral
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 0.7870 19.99MM
Machine Side Connection Type Screw On
Overall Len 1.9210 48.79MM
Machine Side Connection Size T12
Insert Size Ic 0.75
Cutter Dia 0.7870 19.99MM
Flutes/Inserts 1
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Cutting & Machining Properties
Insert Style HC
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru No
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7003603
