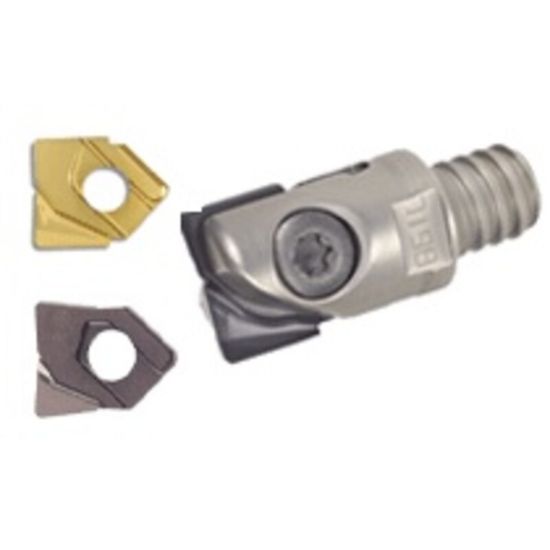

Picture of ISCAR HCE D12/.50-MMT08 Milling Cutter 0.472 Diameter Screw On T08 1.102 OAL 1 Flute

ISCAR HCE D12/.50-MMT08 Milling Cutter 0.472 Diameter Screw On T08 1.102 OAL 1 Flute

ANSI: HCE D12/.50-MMT08

ISO: HCE D12/.50-MMT08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3104310
Delivery date: 3-5 days
$209.28

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Insert Application Semi Finishing, Finishing
Shipping State Texas
Insert Type Neutral
Made In USA No
Application Copy Milling, Profile Milling
Dimensional Specifications
Flutes/Inserts 1
Tool Material Steel
Cutter Dia 0.4720 11.99MM
Insert Size Ic 0.5
Depth Of Cut Max 0.7090
Machine Side Connection Size T08
Machine Side Connection Type Screw On
Cut Dia Min 0.4720 11.99MM
Cut Dia Max 0.4720 11.99MM
Overall Len 1.1020 27.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru No
Insert Style HC
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7002511
