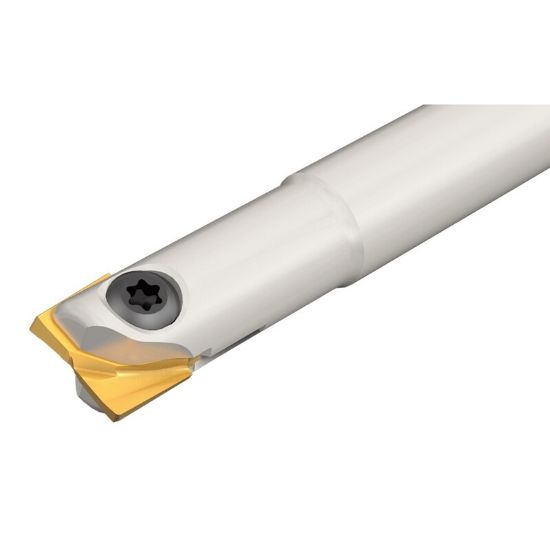

Picture of ISCAR HCE D1.0-A-L6.7-C1.0 Milling Cutter 1.000 Diameter Round 1.000 6.700 OAL 1 Flute

ISCAR HCE D1.0-A-L6.7-C1.0 Milling Cutter 1.000 Diameter Round 1.000 6.700 OAL 1 Flute

ANSI: HCE D1.0-A-L6.7-C1.0

ISO: HCE D1.0-A-L6.7-C1.0

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3103726
Delivery date: 3-5 days
$392.64

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Insert Application Finishing, Semi Finishing
Application Profile Milling, Copy Milling
Insert Type Neutral
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Flutes/Inserts 1
Overall Len 6.7000 170.18MM
Insert Size Ic 1
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru No
Insert Style HC
Cool Sply Type External
Fasteners & Connectors
Insert Screw 7003603
