  • ISCAR H690 FWN D3.00-07-1.25R07 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.250 1.750 OAL 7 Flute

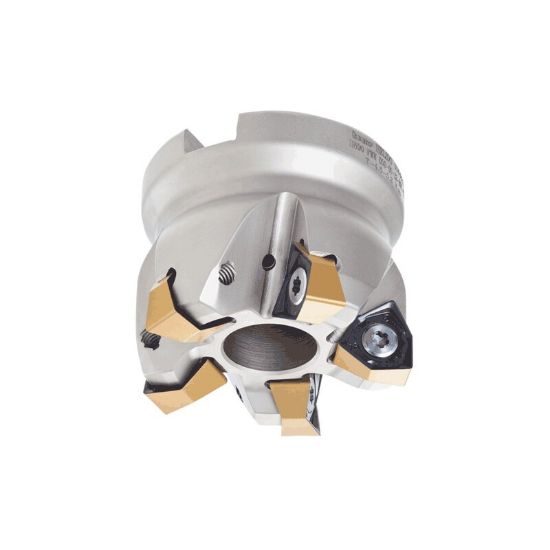

Picture of ISCAR H690 FWN D3.00-07-1.25R07 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.250 1.750 OAL 7 Flute

ISCAR H690 FWN D3.00-07-1.25R07 Milling Cutter 90.0° 3.000 Diameter Face Mill 1.250 1.750 OAL 7 Flute

ANSI: H690 FWN D3.00-07-1.25R07

ISO: H690 FWN D3.00-07-1.25R07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107249
Delivery date: 3-5 days
$827.52

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Slot Milling, Side Milling, Face Milling
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Cut Dia Min 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 3.0000 76.20MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 0.2750
Cut Dia Max 3.0000 76.20MM
Insert Size Ic 7
Overall Len 1.7500 44.45MM
Flutes/Inserts 7
Cutting & Machining Properties
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Trigon
Coolant Thru Yes
Insert Style WN
Fasteners & Connectors
Insert Screw 7006097
