  • ISCAR H690 FWN D2.00-05-0.75R07 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 5 Flute

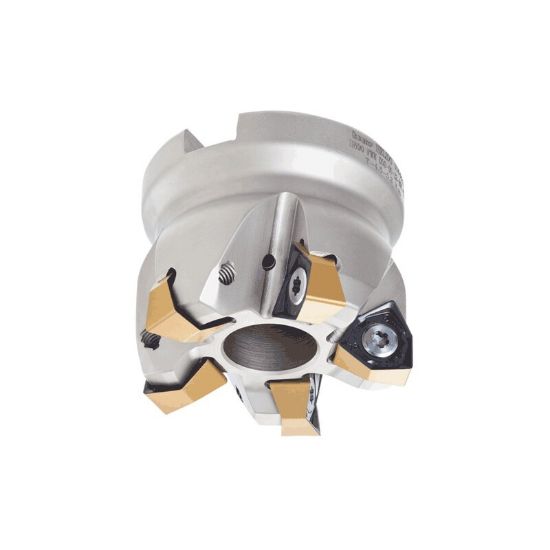

Picture of ISCAR H690 FWN D2.00-05-0.75R07 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 5 Flute

ISCAR H690 FWN D2.00-05-0.75R07 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.750 OAL 5 Flute

ANSI: H690 FWN D2.00-05-0.75R07

ISO: H690 FWN D2.00-05-0.75R07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107248
Delivery date: 3-5 days
$544.32

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Face Milling, Slot Milling
Shipping State Texas
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.2750
Cut Dia Min 2.0000 50.80MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.7500 44.45MM
Cutter Dia 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Insert Size Ic 7
Cut Dia Max 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru Yes
Cool Sply Type Through Hole
Insert Style WN
Insert Shape/Cutter Pocket Shape Trigon
Fasteners & Connectors
Insert Screw 7006097
