  • ISCAR H690 F90AX D2.50-5-1.0-16 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

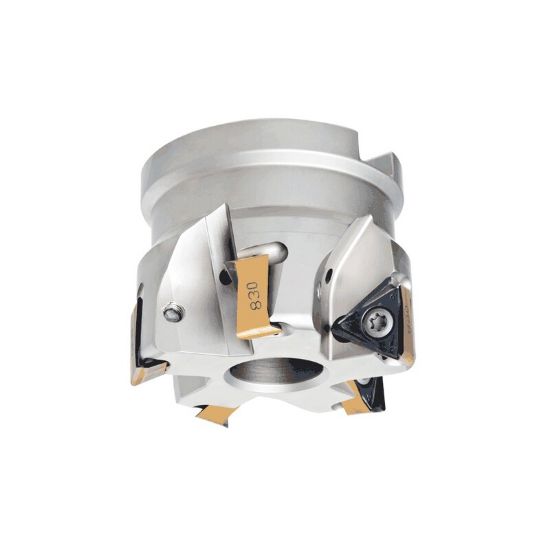

Picture of ISCAR H690 F90AX D2.50-5-1.0-16 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

ISCAR H690 F90AX D2.50-5-1.0-16 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

ANSI: H690 F90AX D2.50-5-1.0-16

ISO: H690 F90AX D2.50-5-1.0-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106644
Delivery date: 3-5 days
$692.16

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Application Side Milling, Slot Milling, Face Milling
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 1.7500 44.45MM
Depth Of Cut Max 0.5310
Cutter Dia 2.5000 63.50MM - 2-1/2
Insert Size Ic 16
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 5
Cutting & Machining Properties
Insert Style H
Cool Sply Type Through Hole
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 7000219
