  • ISCAR H690 F90AX D2.50-4-1.0-16 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 4 Flute

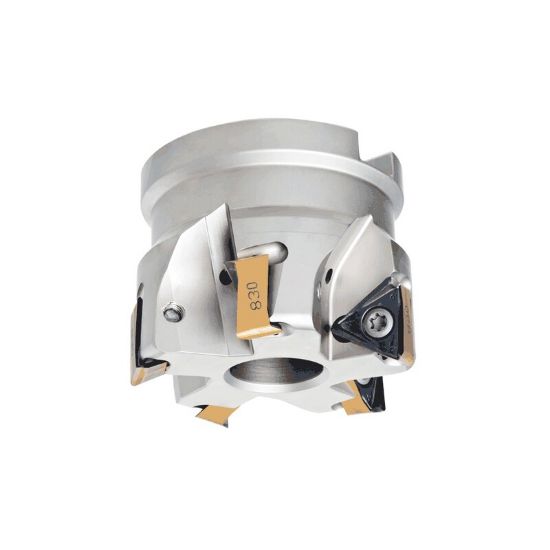

Picture of ISCAR H690 F90AX D2.50-4-1.0-16 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 4 Flute

ISCAR H690 F90AX D2.50-4-1.0-16 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 4 Flute

ANSI: H690 F90AX D2.50-4-1.0-16

ISO: H690 F90AX D2.50-4-1.0-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3106643
Delivery date: 3-5 days
$652.80

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Side Milling, Slot Milling, Face Milling
Insert Type Negative
Made In USA No
Package Size 1
Shipping State Texas
Dimensional Specifications
Depth Of Cut Max 0.5310
Cutter Dia 2.5000 63.50MM - 2-1/2
Tool Material Steel
Overall Len 1.7500 44.45MM
Cut Dia Max 2.5000 63.50MM - 2-1/2
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Insert Size Ic 16
Cut Dia Min 2.5000 63.50MM - 2-1/2
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style H
Cool Sply Type Through Hole
Insert Shape/Cutter Pocket Shape Triangle
Fasteners & Connectors
Insert Screw 7000219
