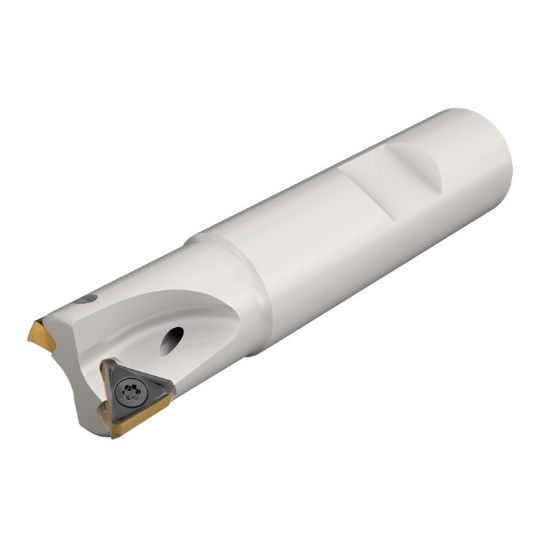

Picture of ISCAR H690 E90AX D.75-2-W.75-10 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.380 OAL 2 Flute

ISCAR H690 E90AX D.75-2-W.75-10 Milling Cutter 90.0° 0.750 Diameter Weldon 0.750 3.380 OAL 2 Flute

ANSI: H690 E90AX D.75-2-W.75-10

ISO: H690 E90AX D.75-2-W.75-10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: ISC3107257
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Slot Milling, Face Milling, Side Milling
Insert Type Negative
Made In USA No
Insert/Tool Tool
Package Size 1
Insert Application Semi Finishing, Roughing
Dimensional Specifications
Depth Of Cut Max 0.3100
Cut Dia Max 0.7500 19.05MM - 3/4
Insert Size Ic 10
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 0.7500 19.05MM - 3/4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Flutes/Inserts 2
Overall Len 3.3800 85.85MM
Cutting & Machining Properties
Insert Style TN
Cool Sply Type External
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Max Ramp Angle 2.80°
Fasteners & Connectors
Insert Screw 7005890
